HYTECON variable-frequency drives

HYTECON drives are designed and built by HY-TECH Industrial in China. We supply the WD200 and WD400 series and use them to control the pumps we install — soft starting, constant pressure and lower energy bills in pumping stations, wells and irrigation systems.

WD200 WD400 Catalogues Which drive?

WD200 · GENERAL PURPOSE

One drive for pumps, fans and machines

Thirty frame ratings from 0.75 to 630 kW, each rated for both heavy (G) and standard (P) duty — pick the P rating for pumps and fans and save a size.

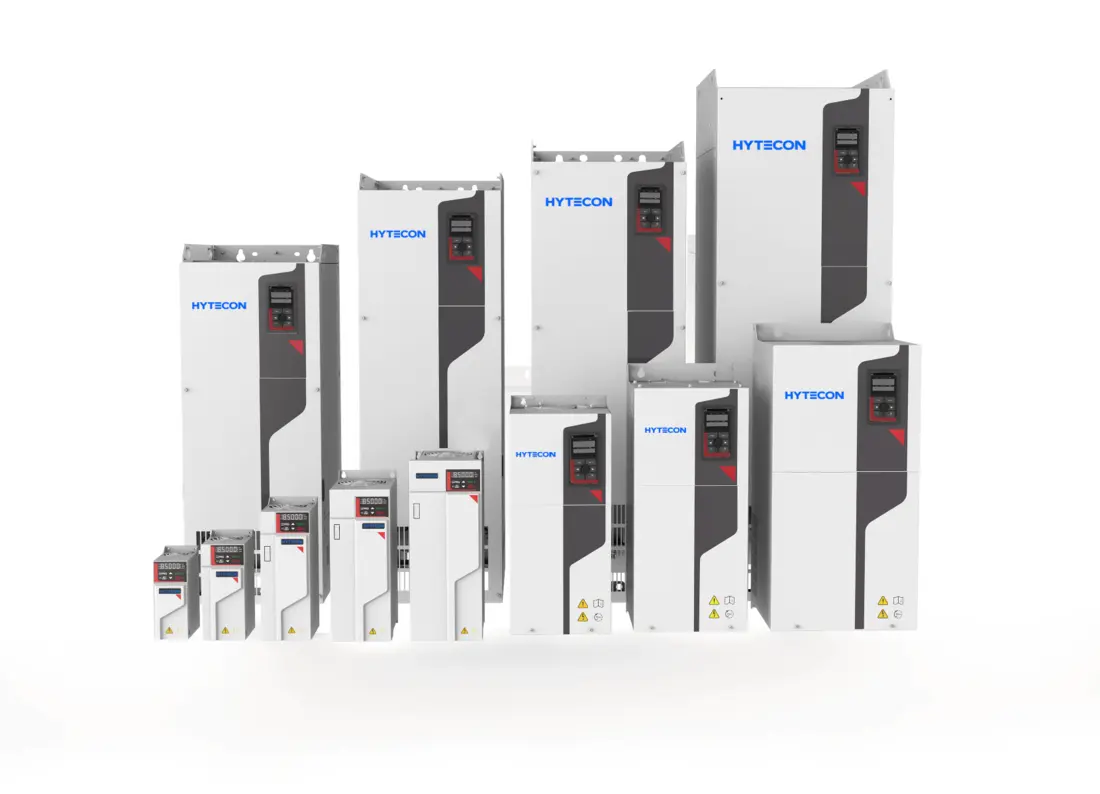

General-purpose AC drive · 0.75–630 kW

WD200 Series

HYTECON · HY-TECH

A high-reliability vector drive for asynchronous and permanent-magnet motors, with dual G/P ratings so one frame covers both heavy and standard duty. Brake unit built in up to 22 kW, Modbus RTU as standard and two expansion slots for I/O, encoder and fieldbus cards.

Power range: 0.75–630 kW (G/P)
Supply: 1-phase 200–240 V · 3-phase 380–480 V · 50/60 Hz
Output frequency: 0–600 Hz
Motors: Induction (IM), permanent-magnet (PMSM), synchronous reluctance (SynRM)
Control: V/F · sensorless vector (SVC) · closed-loop vector (FVC) · PID, multi-speed, simple PLC
Overload: G: 150 % for 60 s · P: 120 % for 60 s
I/O: 2 AI · 2 AO · 7 DI · 1 DO + pulse out · 2 relays (fewer on ≤ 37 kW)
Communication: Modbus RTU built in; options: PROFIBUS-DP, PROFINET, Ethernet, EtherCAT, CANopen
Enclosure & temperature: IP20 · −10 to +50 °C (derate above 40 °C)
Standards: IEC 61800-5-1 · IEC 61800-2

Model	Power kW (G / P)	HP (G / P)	Input A	Output A	W × D × H mm	kg
WD200-T3-R75G/1R5P-B	0.75 / 1.5	1 / 2	3.5 / 5	3 / 4	80 × 155 × 200	1.6
WD200-T3-1R5G/2R2P-B	1.5 / 2.2	2 / 3	5 / 5.8	4 / 6	80 × 155 × 200	1.6
WD200-T3-2R2G/004P-B	2.2 / 4	3 / 5	5.8 / 11	6 / 10	80 × 155 × 200	1.6
WD200-T3-004G/5R5P-B	4 / 5.5	5 / 7.5	11 / 15	10 / 13	100 × 155 × 242	2.2
WD200-T3-5R5G/7R5P-B	5.5 / 7.5	7.5 / 10	15 / 20	13 / 17	100 × 155 × 242	2.2
WD200-T3-7R5G/011P-B	7.5 / 11	10 / 15	20 / 26	17 / 25	116 × 175 × 320	4.2
WD200-T3-011G/015P-B	11 / 15	15 / 20	26 / 35	25 / 32	116 × 175 × 320	4.3
WD200-T3-015G/018P-B	15 / 18.5	20 / 25	35 / 39	32 / 38	142 × 225 × 383	7
WD200-T3-018G/022P-B	18.5 / 22	25 / 30	39 / 46	38 / 45	142 × 225 × 383	7.4
WD200-T3-022G/030P-B	22 / 30	30 / 40	46 / 62	45 / 60	142 × 225 × 383	7.4
WD200-T3-030G/037P	30 / 37	40 / 50	62 / 76	60 / 75	170 × 225 × 430	11
WD200-T3-037G/045P	37 / 45	50 / 60	76 / 90	75 / 90	170 × 225 × 430	11
WD200-T3-045G/055P	45 / 55	60 / 75	90 / 105	90 / 110	240 × 310 × 560	29
WD200-T3-055G/075P	55 / 75	75 / 100	105 / 140	110 / 150	240 × 310 × 560	29
WD200-T3-075G/090P	75 / 90	100 / 125	140 / 160	150 / 180	240 × 310 × 560	29
WD200-T3-090G/110P	90 / 110	125 / 150	160 / 210	180 / 210	270 × 350 × 638	45
WD200-T3-110G/132P	110 / 132	150 / 200	210 / 240	210 / 250	270 × 350 × 638	45
WD200-T3-132G/160P	132 / 160	200 / 250	240 / 290	250 / 310	350 × 390 × 735	51.5
WD200-T3-160G/185P	160 / 185	250 / 248	290 / 330	310 / 340	350 × 390 × 735	51.5
WD200-T3-185G/200P	185 / 200	248 / 275	330 / 370	340 / 380	360 × 485 × 942	63
WD200-T3-200G/220P	200 / 220	275 / 300	370 / 410	380 / 415	360 × 485 × 942	64
WD200-T3-220G/250P	220 / 250	300 / 340	410 / 460	415 / 470	360 × 485 × 942	71
WD200-T3-250G/280P	250 / 280	340 / 380	460 / 500	470 / 510	370 × 545 × 1127	71
WD200-T3-280G/315P	280 / 315	380 / 430	500 / 580	510 / 600	370 × 545 × 1127	71
WD200-T3-315G/355P	315 / 355	430 / 485	580 / 620	600 / 670	400 × 545 × 1212	185
WD200-T3-355G/400P	355 / 400	485 / 545	620 / 670	670 / 750	400 × 545 × 1212	185
WD200-T3-400G/450P	400 / 450	545 / 600	670 / 780	750 / 800	400 × 545 × 1212	185
WD200-T3-450G/500P	450 / 500	600 / 675	780 / 835	800 / 860	460 × 545 × 1400	270
WD200-T3-500G/560P	500 / 560	675 / 750	835 / 920	860 / 990	460 × 545 × 1400	270
WD200-T3-560G/630P	560 / 630	750 / 850	920 / 1050	990 / 1100	460 × 545 × 1400	270

WD200 catalogue PDF WD200 quick start PDF

WD400 · HIGH PERFORMANCE

Precise speed and torque, with built-in safety

For demanding machines and high-efficiency motors, with STO safety and international certifications.

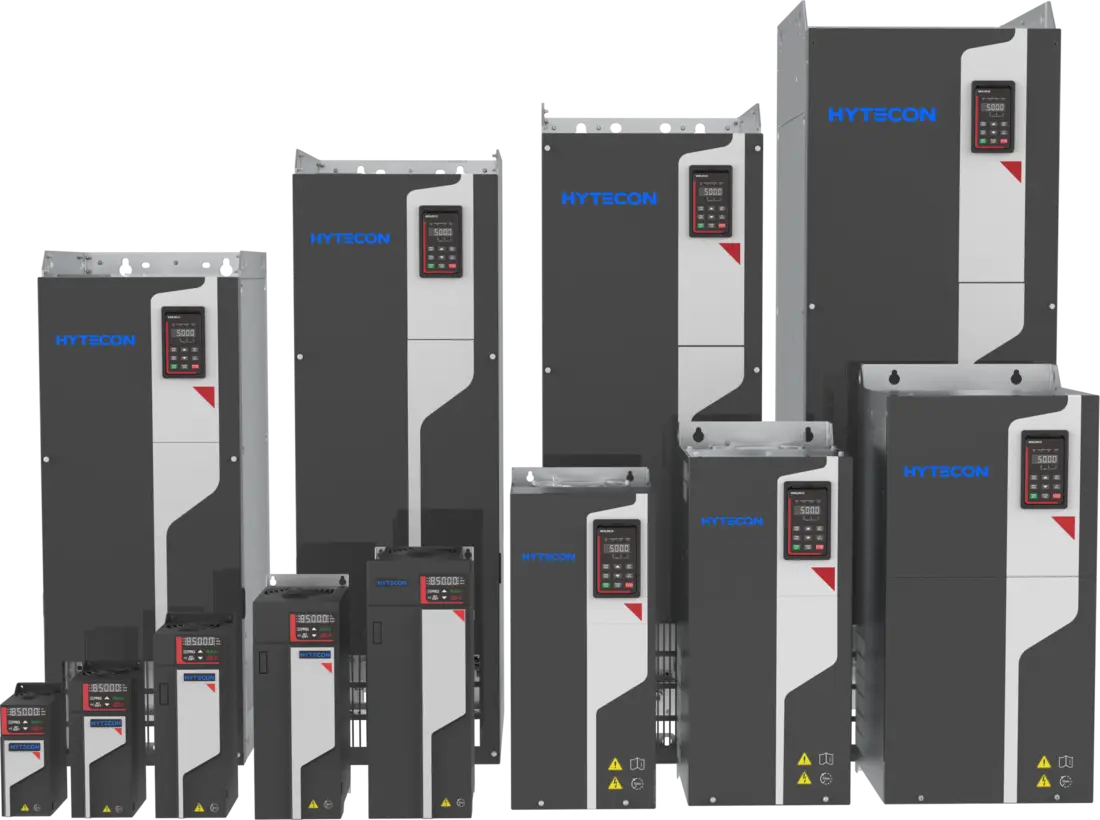

High-performance vector drive · 0.75–560 kW

WD400 Series

HYTECON · HY-TECH

The newer high-performance generation: wider speed range, torque response within 2 ms, Safe Torque Off (STO) and a DC reactor built in from 30 kW. For machines that need precise speed or torque control and for high-efficiency PMSM motors.

Power range: 0.75–560 kW (heavy duty)
Supply: 1-phase 200–240 V · 3-phase 380–480 V · 50/60 Hz
Motors: Induction (IM) and permanent-magnet (PMSM) motors
Control: V/F · SVC (1:500, 200 % starting torque) · FVC with ABZ / sin-cos encoders · STO
Overload: 150 % for 60 s
I/O: 2 AI · 2 AO · 7 DI · 1 DO + pulse out · 2 relays (fewer on ≤ 37 kW)
Communication: Modbus RTU built in; options: PROFIBUS-DP, PROFINET, Ethernet, EtherCAT, CANopen
Enclosure & temperature: IP20 · −10 to +50 °C (derate above 40 °C)
Standards: IEC 61800-5-1 · IEC 61800-2 · CE · UL · EAC

Model	Power kW	HP	Input A	Output A	W × D × H mm	kg
WD400-T3-R75G-B	0.75	1	3.5	3	80 × 155 × 200	1.6
WD400-T3-1R5G-B	1.5	2	5	4	80 × 155 × 200	1.6
WD400-T3-2R2G-B	2.2	3	5.8	6	80 × 155 × 200	1.6
WD400-T3-004G-B	4	5	11	10	100 × 155 × 242	2.2
WD400-T3-5R5G-B	5.5	7.5	15	13	100 × 155 × 242	2.2
WD400-T3-7R5G-B	7.5	10	20	17	116 × 175 × 320	4.2
WD400-T3-011G-B	11	15	26	25	116 × 175 × 320	4.3
WD400-T3-015G-B	15	20	35	32	142 × 225 × 383	7
WD400-T3-018G-B	18.5	25	39	38	142 × 225 × 383	7.4
WD400-T3-022G-B	22	30	46	45	142 × 225 × 383	7.4
WD400-T3-030G	30	40	62	60	170 × 225 × 430	—
WD400-T3-037G	37	50	76	75	170 × 225 × 430	—
WD400-T3-045G	45	60	90	90	240 × 310 × 560	—
WD400-T3-055G	55	75	105	110	240 × 310 × 560	—
WD400-T3-075G	75	100	140	150	240 × 310 × 560	—
WD400-T3-090G	90	125	160	180	270 × 350 × 638	—
WD400-T3-110G	110	150	210	210	270 × 350 × 638	—
WD400-T3-132G	132	200	240	250	350 × 390 × 735	—
WD400-T3-160G	160	250	290	310	350 × 390 × 735	—
WD400-T3-185G	185	248	330	340	360 × 485 × 942	—
WD400-T3-200G	200	275	370	380	360 × 485 × 942	—
WD400-T3-220G	220	300	410	415	360 × 485 × 942	—
WD400-T3-250G	250	340	460	470	370 × 545 × 1127	—
WD400-T3-280G	280	380	500	510	370 × 545 × 1127	—
WD400-T3-315G	315	430	580	600	400 × 545 × 1212	—
WD400-T3-355G	355	485	620	670	400 × 545 × 1212	—
WD400-T3-400G	400	545	670	750	400 × 545 × 1212	—
WD400-T3-450G	450	600	780	800	460 × 545 × 1400	—
WD400-T3-500G	500	675	835	860	460 × 545 × 1400	—
WD400-T3-560G	560	750	920	990	460 × 545 × 1400	—

WD400 catalogue PDF

Catalogues & documents

WD200 cataloguePDF WD200 quick-start guidePDF WD400 cataloguePDF

Which drive fits the application?

ApplicationRecommended drive

Centrifugal pumps, fans and blowersWD200 — P (standard) rating

Well and booster pumps with constant pressure (PID)WD200 with pressure transmitter

Conveyors, mixers and compressorsWD200 — G (heavy) rating

Precise speed or torque control, encoder feedback, PMSM motorsWD400

Pumping stations integrated with PLC / SCADAWD200 or WD400 with Modbus RTU or PROFINET module

Ratings: G = heavy duty (150 % for 60 s), P = standard duty (120 % for 60 s). Dimensions are width × depth × height in mm. Values are from HYTECON’s catalogues and may change with new revisions.

Supplying projects in Egypt and across Africa

We export this range from Egypt to projects throughout Africa — Sudan, Libya, Chad, Kenya, Ethiopia, Senegal, Côte d’Ivoire, Nigeria and beyond — with selection support, export documents and after-sales service.

Export to Africa

Need a drive sized for your pump or motor?

Send us the motor nameplate (kW, voltage, current) and the application — we will select the drive, the panel and the accessories and quote the complete package.
